Long Line Heater Management System

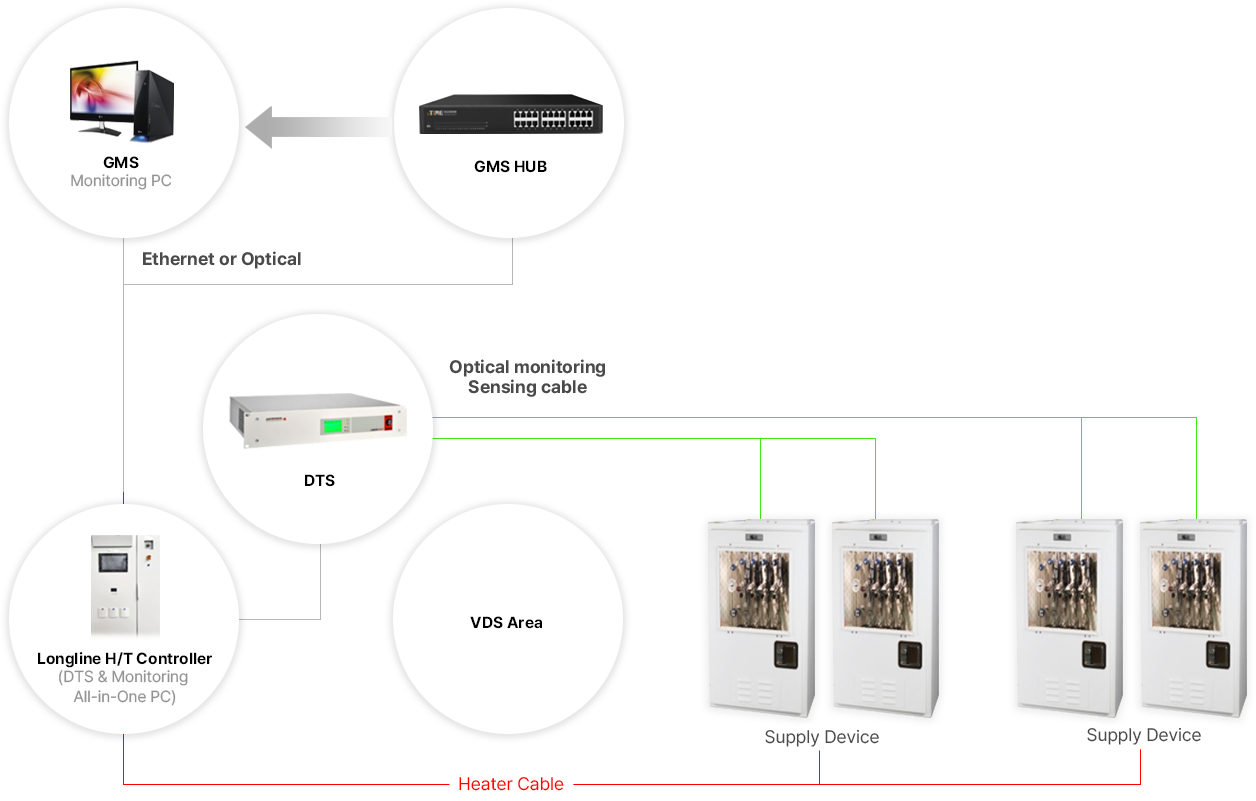

This system is applied to supply lines from semiconductor gas plants and refinery supply devices (ISO) to equipment. It performs simultaneous heating and temperature control across the entire pipeline and integrates a real-time temperature monitoring system using optical sensors.
Heating Controller
Using fiber-optic sensor cables, the system enables real-time monitoring and control of the entire gas supply pipeline temperature. In case of any faults or hazardous conditions, it triggers an alarm and immediately notifies the user.
Product Specifications
| Control Panel Dimension | W800xD560xH1985 |
|---|---|
| Control Power | 208V~ 20A |
| Heater Power | 220V~ 600V |
| Touch Screen | XTOP-RX1000VD/SP |
| SCR | PION-UL1W-030-00 |
| PLC CPU | CJ2H-CPU64-EIP |
| Temp In | TC101 |
| SCR | PION-UL1W-030-00 |
Components
Construction Cases
LLMS(Long Line Monitoring System)
LLMS is a Long Line Heater Management System that enables real-time monitoring of the overall gas pipeline temperature.When any abnormal signs are detected, the system sends an immediate alert to the user, allowing for a faster response.
